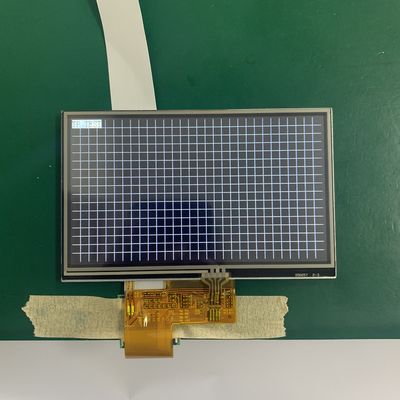

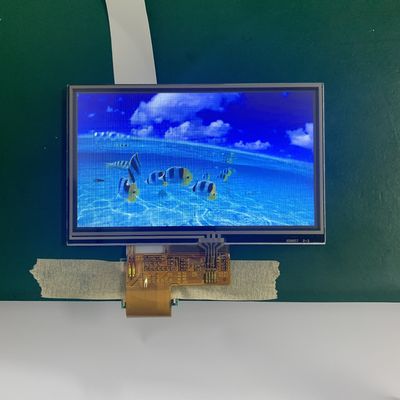

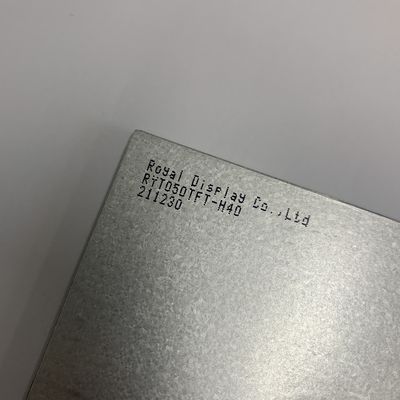

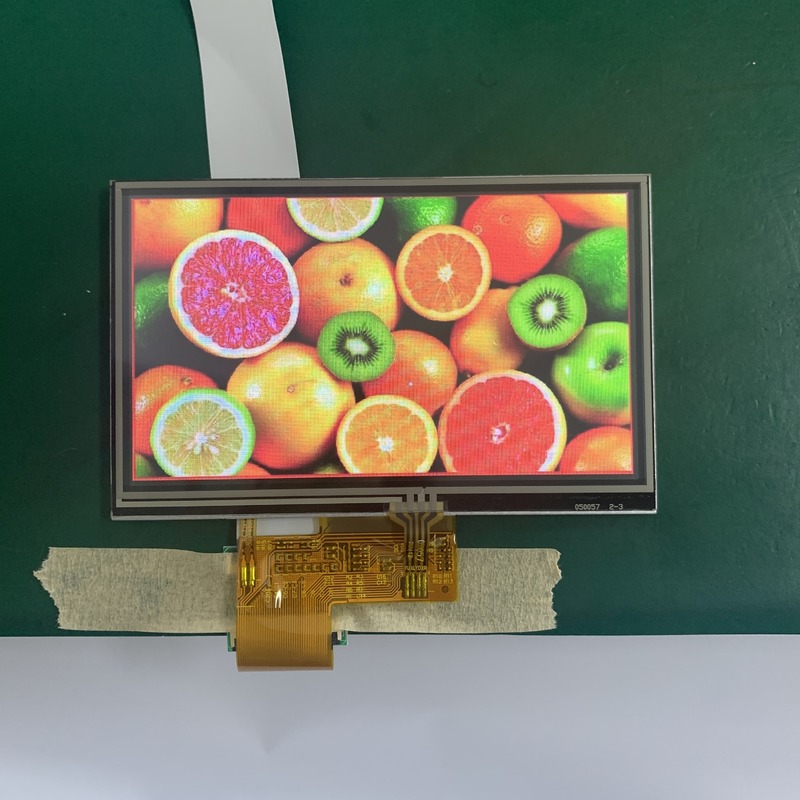

RYT050TFT-H40 5.0-inch TFT LCD Display Module 480x272 Resolution Wide Temperature
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | Royal Display or ODM/OEM |
| 証明: | SGS, ROHS |
| モデル番号: | RYT050TFT-H40 |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン、キャップボード、EPE、ブリスタートレイ。 |
| 受渡し時間: | 15〜25営業日 |
| 支払条件: | L/C、D/A、D/P、T/T、Western Union、MoneyGram |
| 供給の能力: | 300K PCS/月 |
|
詳細情報 |
|||
| モデル: | RYT050TFT-H40 | 画面サイズ: | 5.0インチ |
|---|---|---|---|
| アクティブエリア: | 110.8（h）×62.8（v）mm | 解決: | 480（RGB）×272ピクセル |
| ピクセルピッチ: | 0.135（h）×0.135（v）mm | 表示モード: | 通常は白 |
| ハイライト: | 5.0-inch TFT LCD display module,480x272 resolution TFT LCD,wide temperature TFT LCD module |
||
製品の説明
RYT050TFT-H40 5.0-inch TFT LCD Display Module 480x272 Resolution Wide Temperature
The famous brands display we have
BOE: Large-scale production, AMOLED, all-size dominance. You could get BOE LCD Modules from us, or customize display here using BOE glass.
AUO: High-quality TFT displays, perfect for many automotive and industrial scenarios. You could share product drawing or part number with us, we will check for lead time and quotation for you.
Innolux: Both glass only or original displays are available here.
Tianma: Provide abundant solutions for industrial and custom displays.
Waveshare: It's embeded solutions integrator/ reseller.
E-paper displays: E-ink, Good display, DKE or other e-paper display brands.
If you are looking for more cost-effective or some products that are EOL, you could ask for recommendations, we will send you quotation and lead time based on your requirements.
Product Description
| Item | Description |
| Model | RYT050TFT-H40 |
| Screen Size | 5.0 inch |
| Active Area | 110.8 (H) × 62.8 (V) mm |
| Resolution | 480 (RGB) × 272 pixels |
| Pixel Pitch | 0.135 (H) × 0.135 (V) mm |
| Display Mode | Normally White |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 480 : 1 (Typ.) |
| Response Time | 10 ms (Typ. |
| Viewing Angle | L/R: 75°, U: 50°, D: 60° (Typ., CR>10) |
| Optimum View | 6 o'clock |
| Interface | 40-pin FPC (FH19SC-40S-0.5SH) |
| Logic Voltage (VDD) | 3.3V (Typ.) |
| Backlight Type | LED, 12 LEDs |
| Backlight Current | 40 mA (Typ.) |
| Backlight Voltage | 19.8 V (Typ.) |
| Operating Temp | -20°C ~ +70°C |
| Storage Temp | -30°C ~ +80°C |
| Outline Dim | 120.7 × 75.8 × 3.0 mm (Typ.) |
Short Description:
RYT050TFT-H40 is a 5.0-inch TFT LCD display module with a resolution of 480(RGB)×272, typical brightness of 250 nits, wide temperature design, suitable for MP5, portable navigation devices and multimedia applications.
Our Advantages
Over 10-year expert in LCD modules, 20,000m² own factory; 12-month product warranty
OEM/ODM and customization services available, Professional R&D team and overseas sales team
100% inspection before shipment; fast delivery time; Items carry RoHS, CE and SGS marks
Products widely used in instruments and handheld devices, and the medical and automotive industries
Application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
FAQs
ABOUT TFT LCD DISPLAY
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
Product Overview
The RYT050TFT-H40 is a 5.0-inch TFT liquid crystal display module that uses amorphous silicon TFT as a switching device, featuring WVGA (480×272) resolution. This module integrates a TFT LCD panel and a driving circuit, delivering clear image display, and complies with RoHS and Halogen-Free standards. It is suitable for various consumer electronics and multimedia devices.
Features
Broad selection of off the shelf products
Sunlight readable options available
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available
Customizable FPC cables, LED backlights, and bezels
